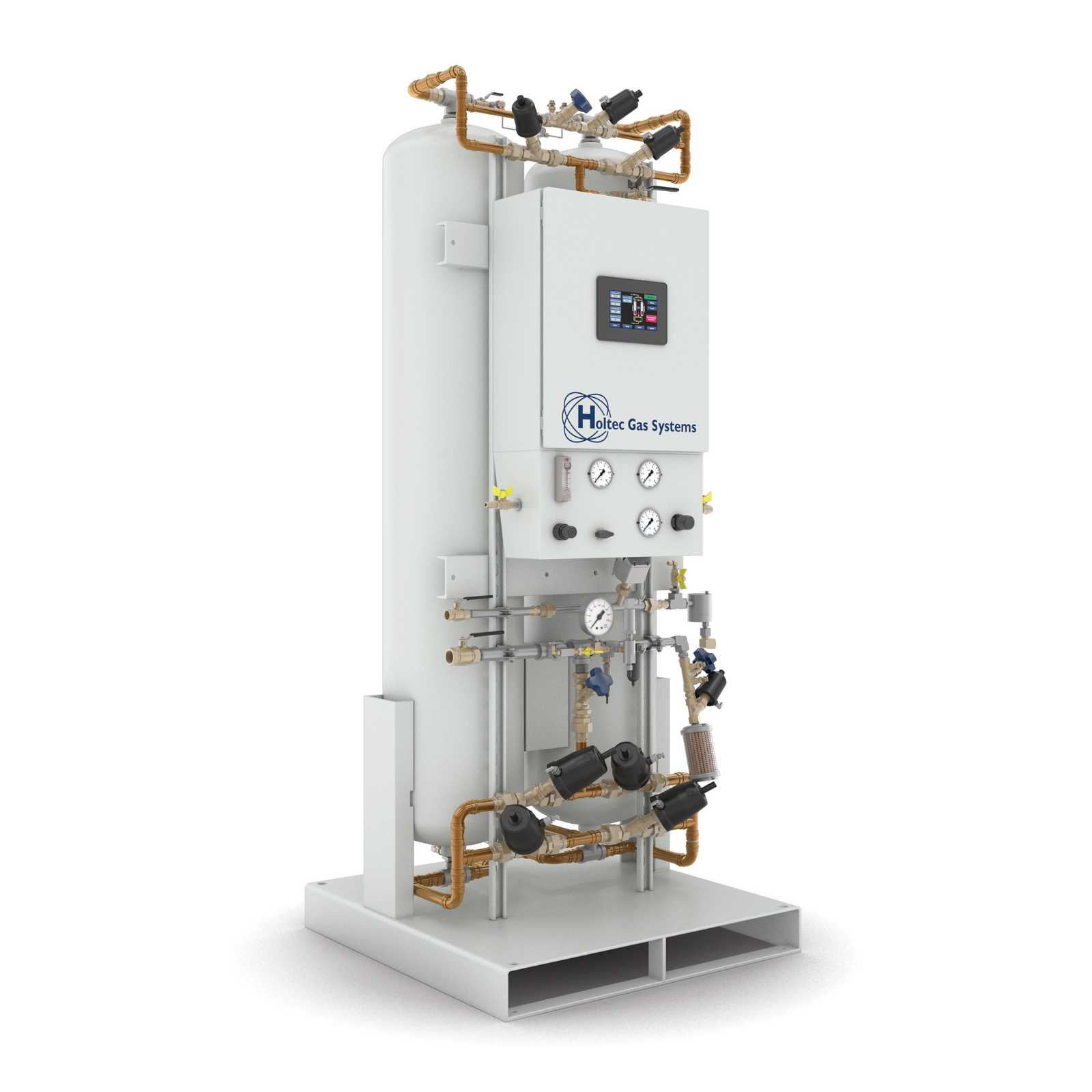

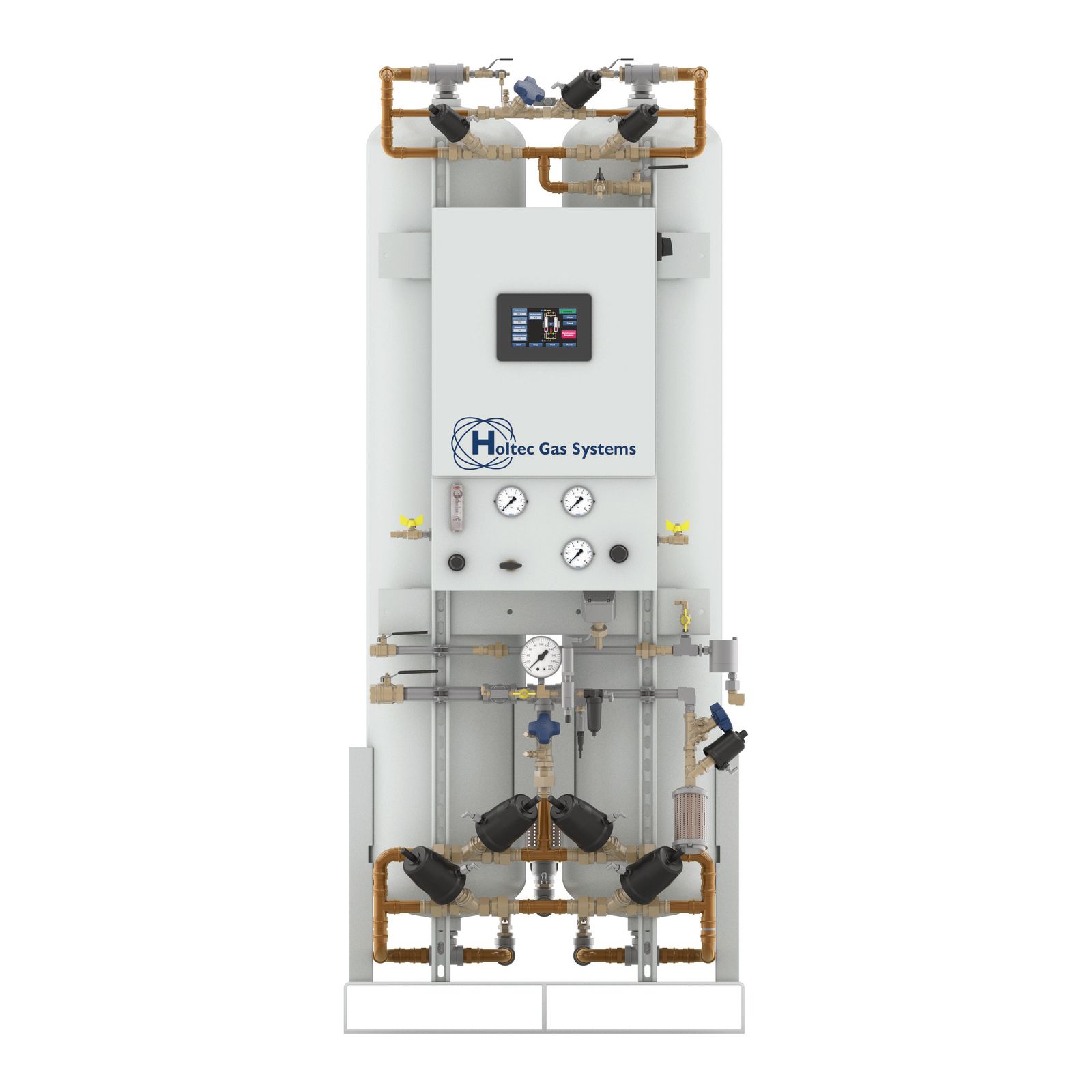

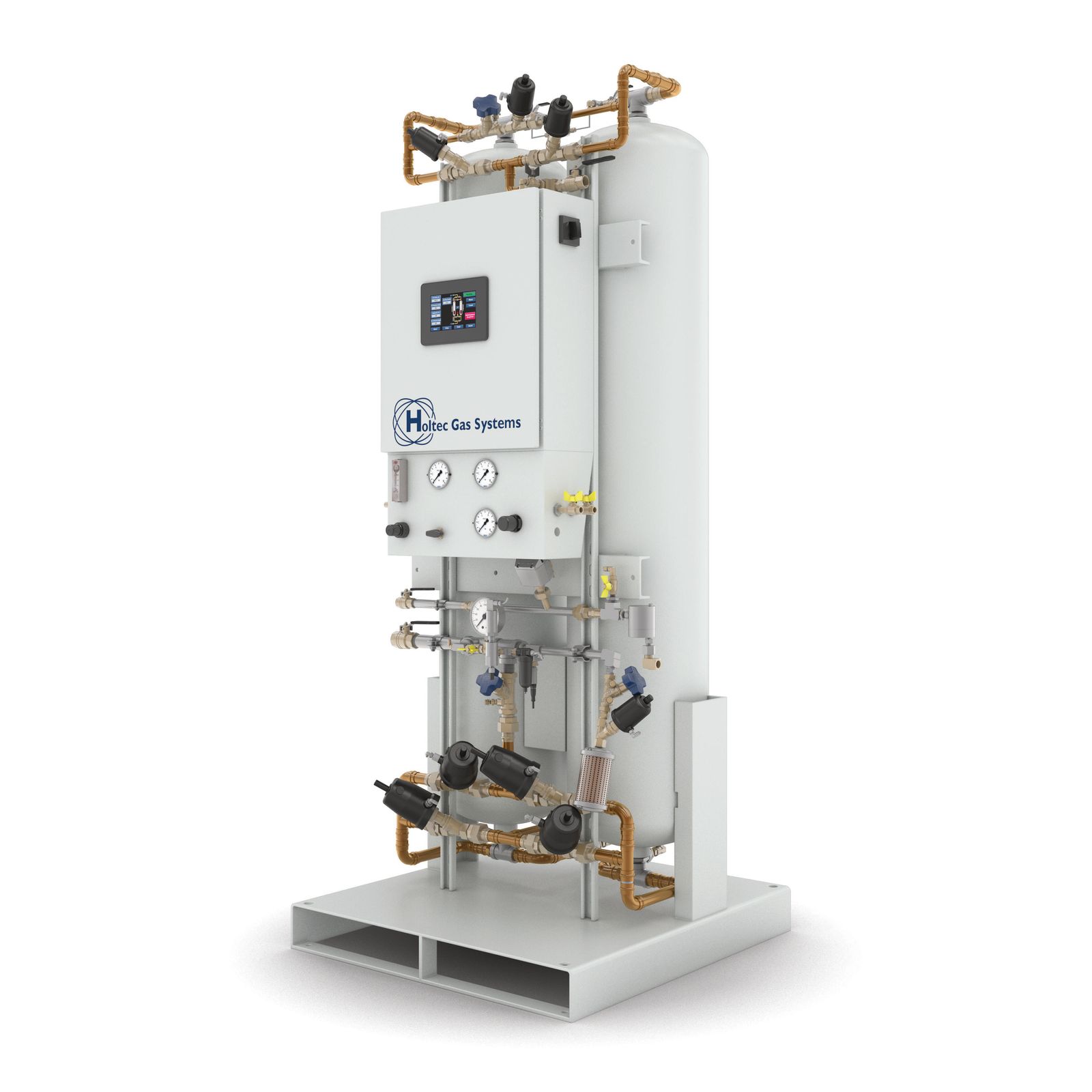

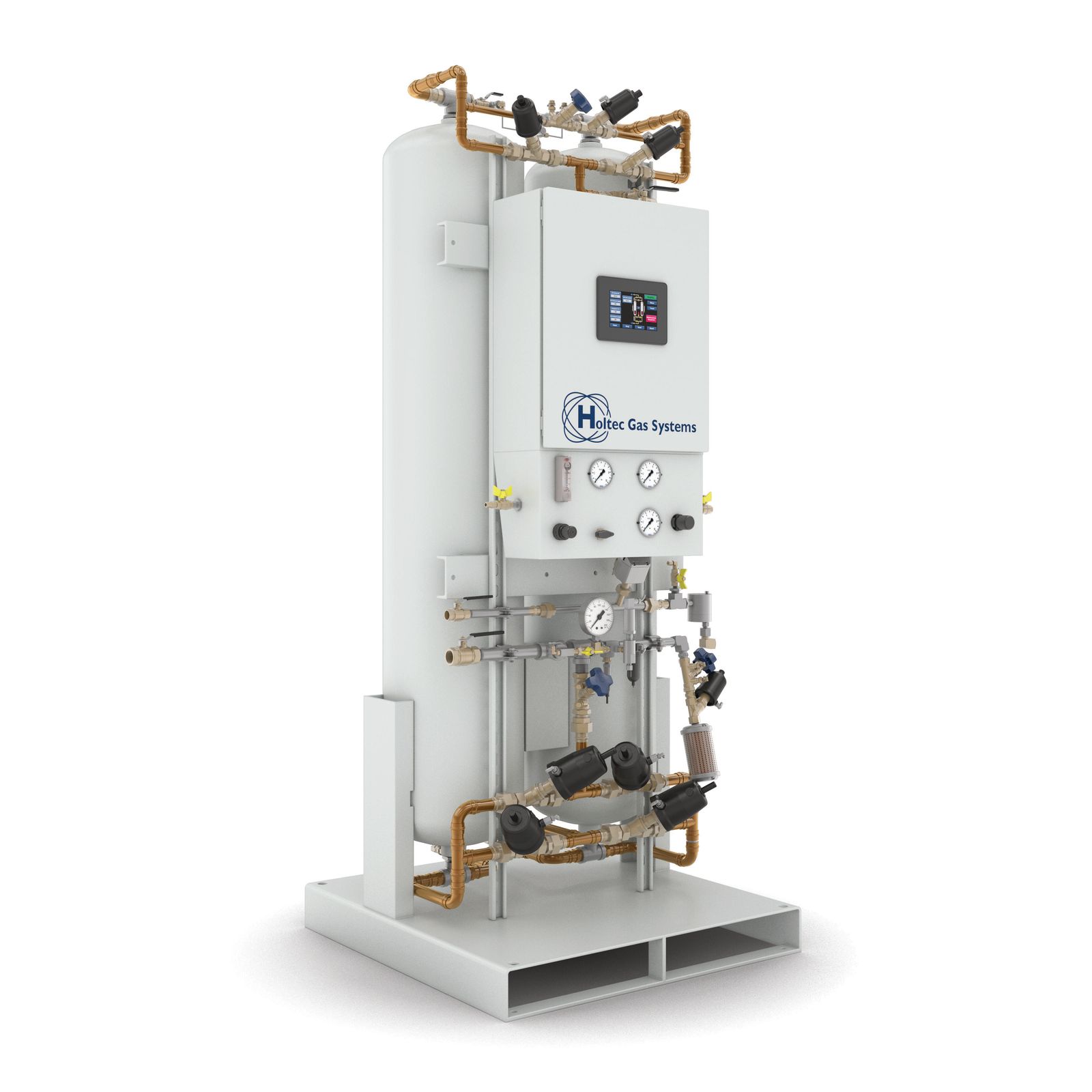

Holtec HOB Series Oxygen Generators are engineered to deliver high-purity oxygen at your own facility, eliminating the risks, costs, and delays of bulk supply. Built in North America to The American Society of Mechanical Engineers (ASME) standards, these systems offer scalable performance, advanced controls, and long-term reliability. Whether you're operating in biogas, mining, aquaculture, water treatment, or manufacturing, Holtec delivers the on-site oxygen generation when and where you need it.
• 120V – 1ph – 50/60 Hz power compatibility
• ASME VIII Div 1 adsorbers for proven pressure vessel integrity
• 20-year design life adsorbers for long-term reliability
• 5 million cycle switching valves for extended service life
• 7” full-color HMI with PLC for intuitive system control
• Automatic standby mode based on user-defined pressure setpoints
• UL-listed control panel with integrated oxygen analyzer
Model | 90% Purity O2 SCFM (70ºF) | 93% Purity O2 SCFM (70ºF) | 95% Purity O2 SCFM (70ºF) | Inlet Air | Outlet O2 to Buffer Tank | Inlet O2 Flow Control | Outlet Oxygen to User | Length (inches) | Width (inches) | Height (inches) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
HOBS-30 | 1.3 | 1.3 | 1.2 | 3/4 | 1/2 | 1/2 | 1/2 | 35 | 26 | 81.5 | 711 |
HOBS-40 | 1.7 | 1.7 | 1.5 | 3/4 | 1/2 | 1/2 | 1/2 | 35 | 26 | 101.5 | 751 |
HOBS-50 | 2.2 | 2.2 | 2 | 3/4 | 1/2 | 1/2 | 1/2 | 35 | 26 | 81.5 | 1004 |
HOBS-60 | 2.7 | 2.7 | 2.5 | 3/4 | 1/2 | 1/2 | 1/2 | 35 | 26 | 97.5 | 1021 |
HOBS-75 | 3.4 | 3.3 | 3.1 | 3/4 | 1/2 | 1/2 | 1/2 | 35 | 30 | 81.5 | 1085 |
HOBS-90 | 4.1 | 4 | 3.7 | 3/4 | 1/2 | 1/2 | 1/2 | 35 | 30 | 101.5 | 1225 |
HOBS-110 | 4.8 | 4.7 | 4.3 | 1 | 3/4 | 1/2 | 1/2 | 35 | 30 | 81.5 | 1327 |
HOBS-125 | 5.6 | 5.5 | 5.1 | 1 | 3/4 | 1/2 | 1/2 | 35 | 30 | 92.5 | 1485 |
HOBS-145 | 6.2 | 6.1 | 5.7 | 1 | 3/4 | 1/2 | 1/2 | 35 | 37 | 90 | 1547 |
HOBS-165 | 7.3 | 7.2 | 6.7 | 1 | 3/4 | 1/2 | 1/2 | 35 | 37 | 97.5 | 1685 |
HOBS-195 | 8.6 | 8.4 | 7.8 | 1 | 3/4 | 1/2 | 1/2 | 35 | 39 | 91.5 | 1916 |
HOBS-220 | 9.7 | 9.6 | 8.8 | 1 | 3/4 | 1/2 | 1/2 | 35 | 39 | 100.5 | 2099 |
Notes:
