- Turnkey, dry air ready design – Connect Class 4 (40°F PDP) dry air and go live quickly with reduced startup risk.
- High‑pressure storage up to 4,350 psi – Produce off‑shift and unload during peaks to avoid oversizing.
- Long‑life components – Adsorbers designed for ~20 years and valves rated to ~5M cycles
- Flexible, scalable storage – Loose high‑pressure storage lets facilities expand as demand grows.
- Holtec consultative engineering – Front‑loaded project review ensures correct sizing and integration.
- Flexible - Oil-free or oil-flooded nitrogen boosters with high-pressure filtration
- Quiet operation - Sound reducing enclosures on some options

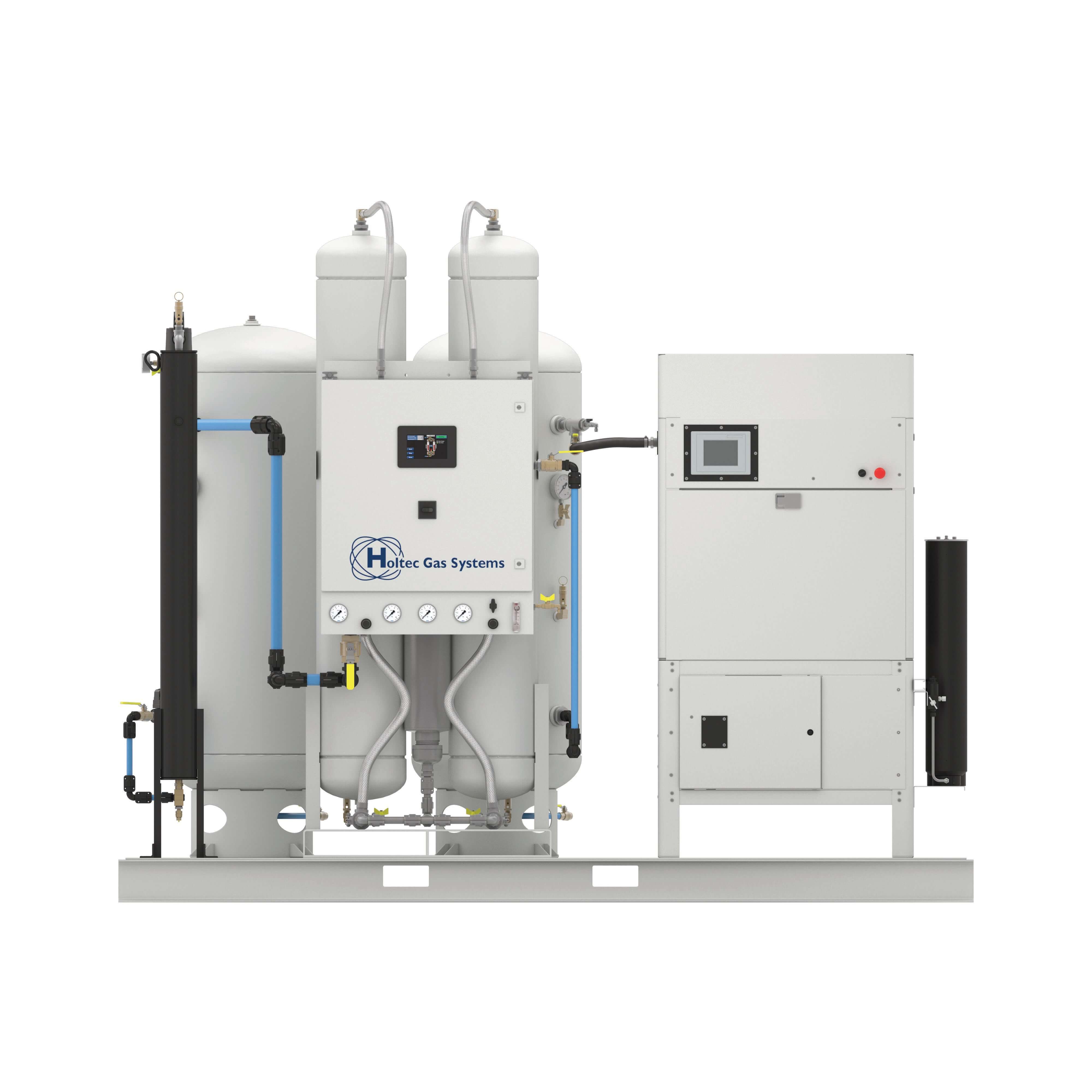

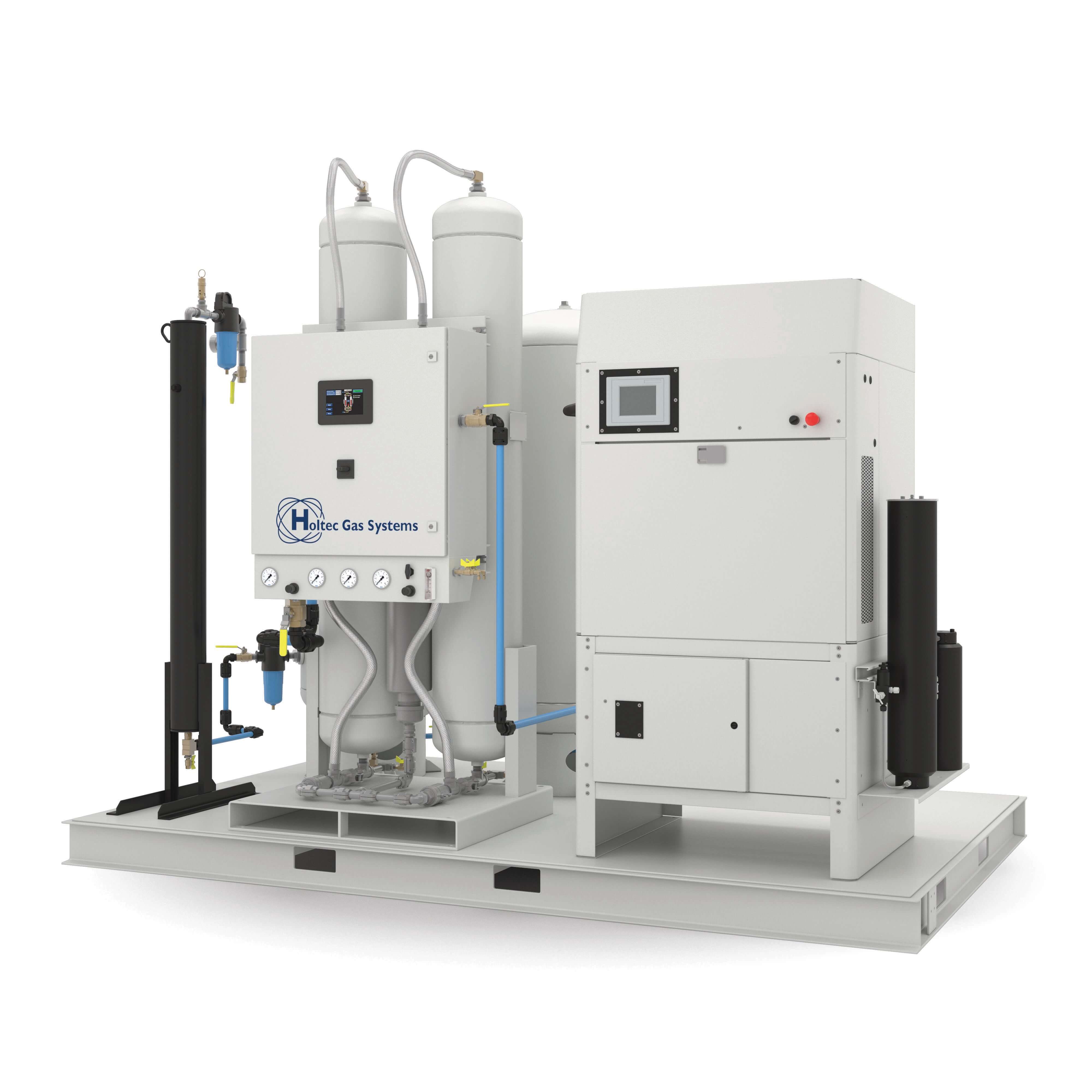

The Holtec HNV Series High Pressure Nitrogen System gives you the ability to produce nitrogen off shift, store it at high pressure, and cover peak usage without oversizing your generator. Reduce vendor dependence, stabilize operating costs, and size your system for real world demand, not worst case scenarios. Ideal for laser cutting and other applications where high nitrogen demand spikes occur intermittently.
Typical Operating Assumptions - N2 purity of 100 ppm @ 70°F & 115 psig Inlet Pressure1
Model | Max N2 SCF/Day | Max Outlet2 N2 pressure | Booster HP | Booster Type | Skid Inlet Pressure Range | Skid Inlet | Skid Outlet3 | Length4 | Width4 | Height4 | Weight4 |
|---|---|---|---|---|---|---|---|---|---|---|---|
HNV25 | 2160 | 2500 psi | 1.5 | Oil-Free | 75-150 psi | 1/4" FNPT | 1/4" FNPT | 107" | 69" | 76" | 2100 lbs |
HNV45 | 4075 | 2500 psi | 3 | Oil-Free | 75-150 psi | 1/4" FNPT | 1/4" FNPT | 107" | 69" | 76" | 2125 lbs |
HNV60 | 5285 | 2500 psi | 5 | Oil-Free | 75-150 psi | 1/4" FNPT | 1/4" FNPT | 107" | 69" | 76" | 2294 lbs |
HNV170 | 14184 | 5000 psi | 7.5 | Oil-Flooded | 90-150 psi | 1/2" FNPT | 1/4" OD | 121" | 78" | 106" | 4005 lbs |
HNV290 | 25920 | 5000 psi | 15 | Oil-Flooded | 115-150 psi | 3/4" FNPT | 1/4" OD | 121" | 78" | 96" | 5136 lbs |
HNV425 | 38160 | 5000 psi | 20 | Oil-Flooded | 75-150 psi | 1" FNPT | 1/4" OD | 121" | 78" | 105" | 5362 lbs |
Notes:
- N2 SCF/Day based on given purity, temperature, and inlet pressure. Variation will affect max N2 Flow. Consult factory for performance at other purities, temperatures and/or pressures.
Limited to storage pressure ratings.
Skid Outlet is high pressure booster outlet.
Height and Weight are estimates. Consult factory with height or weight concerns.
